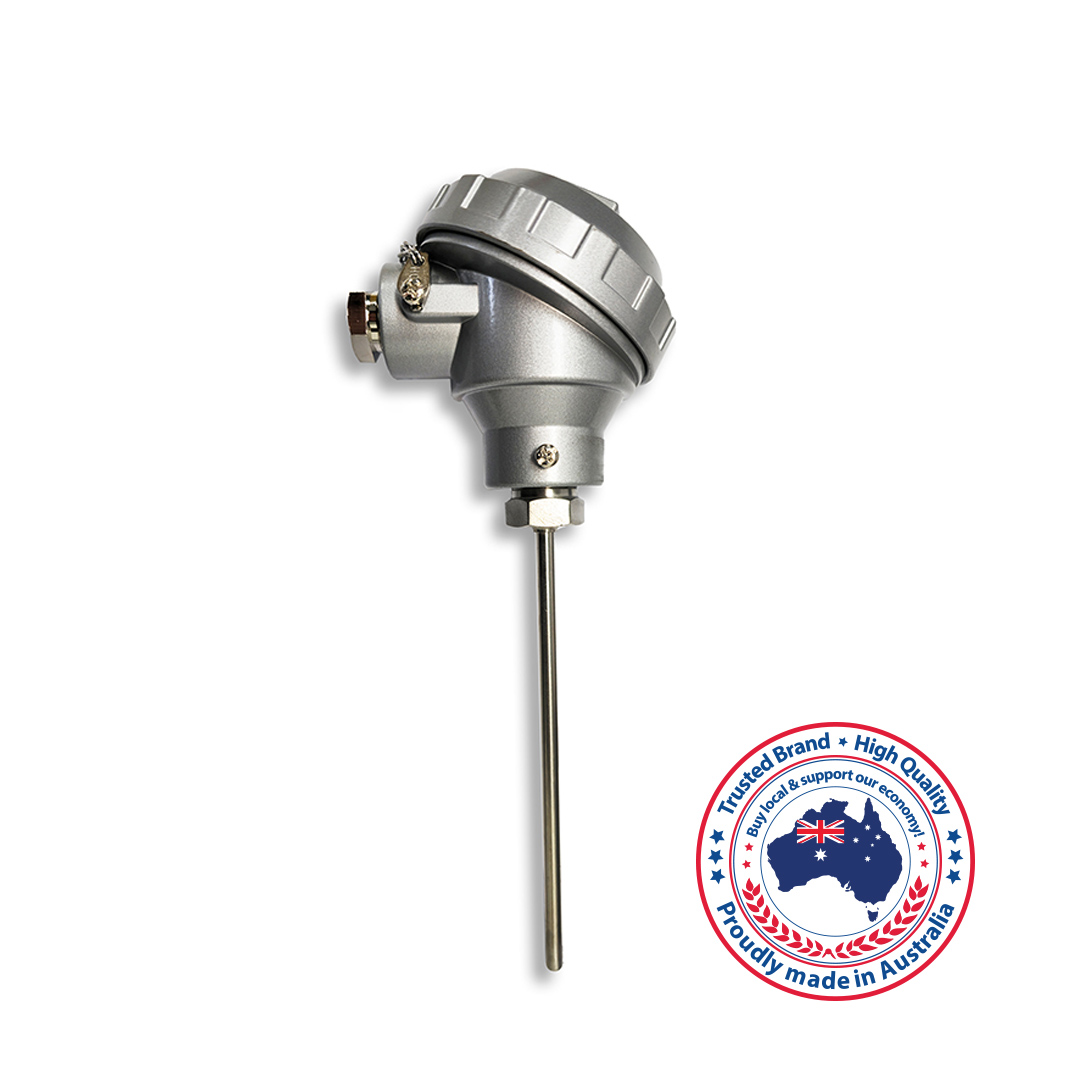

ECEFast TS-14P Style RTD – IP67 Large Alloy Head, No Thread Duplex, Stainless Steel

TS-14P RTD

TS-14P RTD Series

  • Large Alloy Terminal Head
  • Duplex design
  • No Process fitting
  • Optional Probe Diameter and Length
  • Standard Diameters: 4.7mm, 6mm (Others Available)
  • 2x 3 Wire PT100 Class A
  • Sheath made with 316 Stainless Steel
  • Immediate delivery on standard stocked Sensors
  • 3-5 Day delivery on custom manufactured Sensors

Product Overview:

TS-14P RTD’s (Resistance Temperature Detector)

  • IP67 Aluminium (Bakelite, Stainless and Cast Iron optional) Terminal Head
  • Duplex design
  • No Fixed Process fitting (See Accessories for Available Compression Fittings)
  • Diameter: 4.7mm and 6mm (Others available) at various lengths
  • Cold Junction: Rated at 100°C
  • Connector block: Bakelite (Ceramic and 4-20mA Transmitter optional)
  • Standard: PT100 Class A: Pt100, Pt1000 in Class A, B, through to 1/10 DIN [Band 5] available.
  • 316 Stainless Steel sheath
  • Other variation options include different temperature range, high temperature cold junction, and vibration proof

We offer a comprehensive range of RTD sensors with connection terminal heads designed to protect the internal components from harsh operation environments. Our sensors come with a IP67 rating, all screws, washers and chain are stainless steel.

Each probe in our TS series are manufactured in-house in our Melbourne factory. Standard designs are available in stock while we are fully equipped to make custom probes to suit all applications.

Contact us for any technically difficult temperature measurement application.

Data Sheets

TS-14P RTD_Data_Sheet
