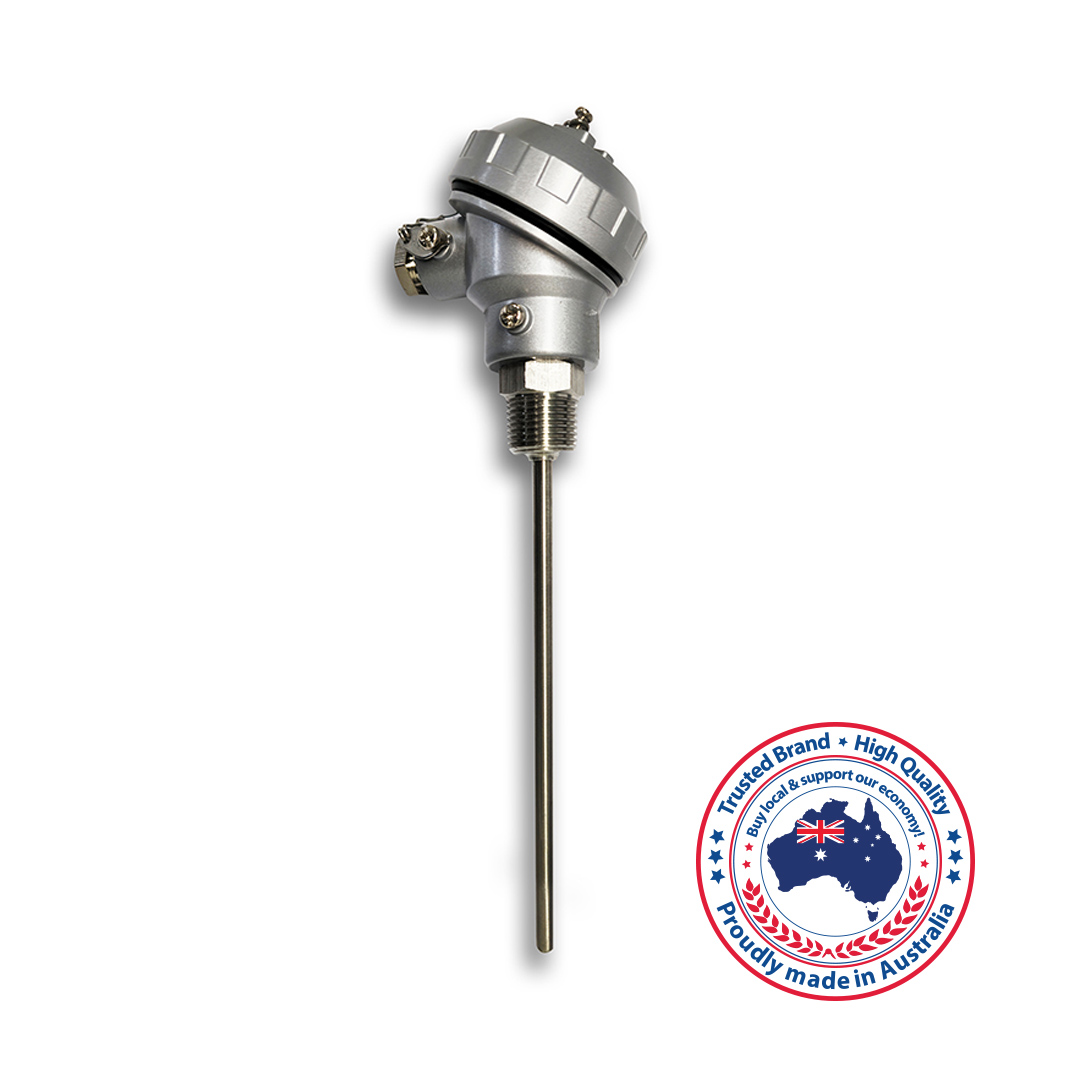

ECEFast TS-11P Style RTD’s – IP67 Small Alloy Head, 1/2″ BSP Fitting, Stainless Steel Sheath


TS-11P RTD Series

  • Small Alloy Terminal Head.
  • ½”BSP Process fitting (Others Available)
  • 3 Wire, PT100 Class A Element
  • Optional Probe Diameter and Length
  • Standard Diameters: 3mm, 4.7mm, 6mm (Others Available)
  • Standard Operating Range: -50 to +260 Deg. C
  • Immediate delivery on standard stocked Sensors
  • 3-5 Day delivery on custom manufactured Sensors

Product Overview:

TS-11P RTD’s (Resistance Temperature Detector)

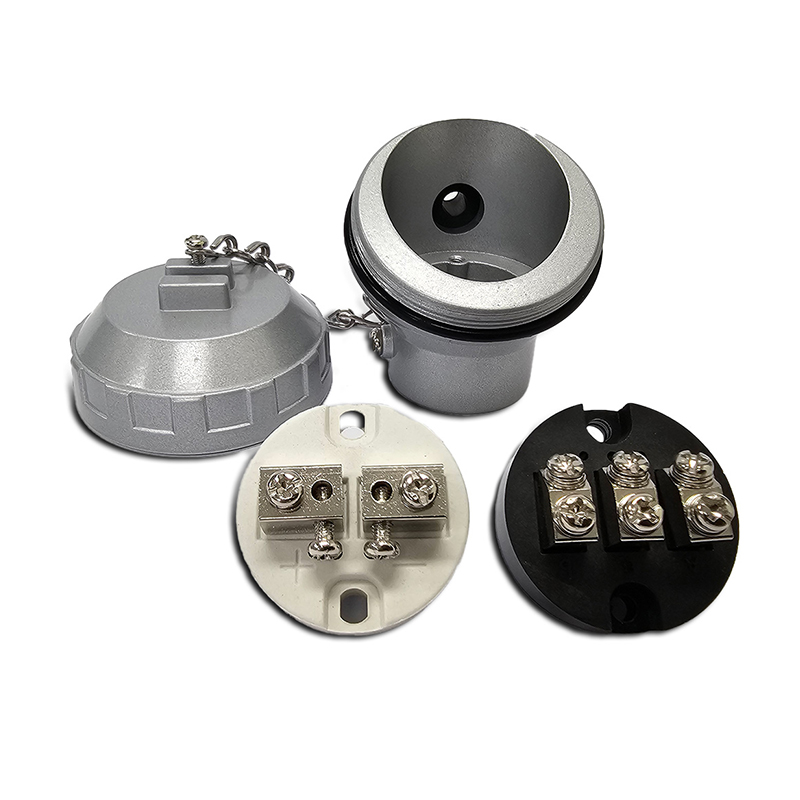

  • IP67 Small Aluminium or Bakelite (Optional) Terminal Head
  • Standard 3 Wire & 4 Wire
  • Process Fitting: ½”BSP (Various thread sizes available as well as BSPP and NPT threads also available)
  • Diameter: 3mm, 4.5mm and 6mm (Others available) at various lengths
  • Standard Operating Range: -50 to +260 Deg. C
  • Cold Junction: Rated at 100°C
  • Connector block: Bakelite (Ceramic optional)
  • Standard: PT100 Class A: Pt100, Pt1000 in Class A, B, through to 1/10 DIN [Band 5] available.
  • Sheath made with 316 Stainless Steel
  • Other variation options include different temperature range, high temperature cold junction, and vibration proof

We offer a comprehensive range of RTD sensors with connection terminal heads designed to protect the internal components from harsh operation environments. Our sensors come with a IP67 rating, all screws, washers and chain are stainless steel.

Each probe in our TS series are manufactured in-house in our Melbourne factory. Standard designs are available in stock while we are fully equipped to make custom probes to suit all applications.

Contact us for any technically difficult temperature measurement application.

Data Sheets

TS-11P RTD_Data_Sheet
