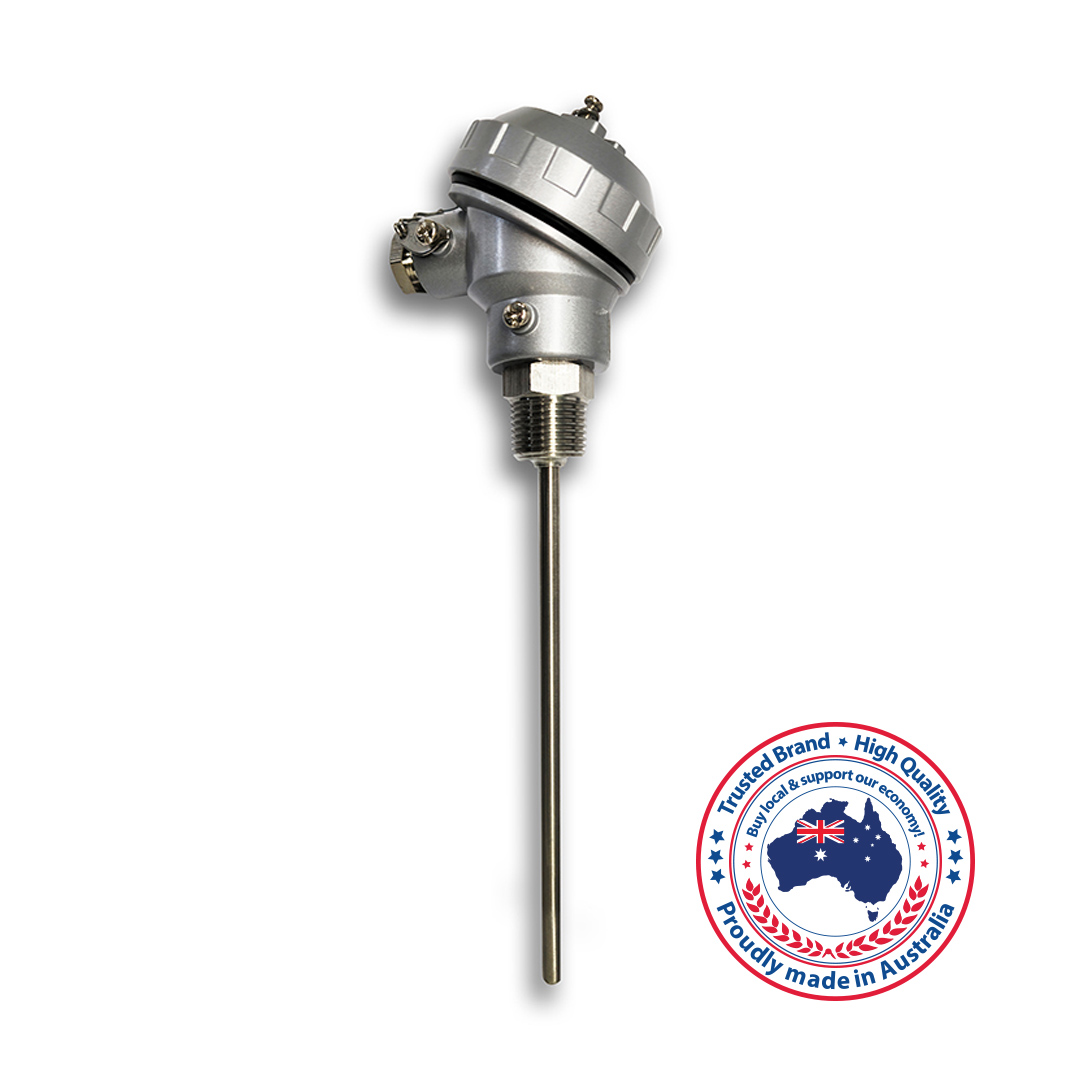

ECEFast TS-11 Style Thermocouple – IP67 Small Alloy Head, 1/2″ BSP Fitting, Stainless Steel Sheath

TS-11 T/C

TS-11 Thermocouple Series

  • Small Alloy Terminal Head
  • ½”BSP Process Fitting
  • Thermocouple Types: (J, K, T, N)
  • Mineral Insulated (MI) Construction
  • Optional Probe Diameter and Length
  • Standard Diameters: 3mm, 4.5mm, 6mm (Others Available)
  • Immediate delivery on standard stocked Sensors
  • 3-5 Day delivery on custom manufactured Sensors

Product Overview:


TS-11 Mineral Insulated thermocouple construction

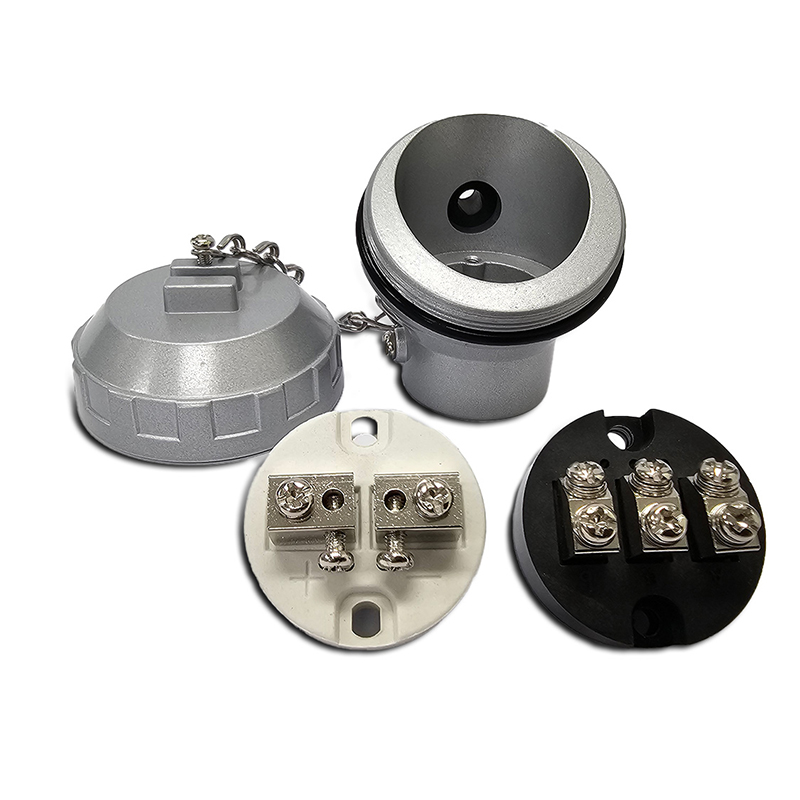

  • IP67 Small Aluminium or Bakelite (Optional) Terminal Head
  • Simplex construction
  • Process Fitting: ½”BSP (Various thread sizes available as well as BSPP and NPT threads also available)
  • Diameter: 3mm, 4.5mm and 6mm (Others available) at various lengths
  • Thermocouple Calibration Types
  • K (Up to 1100°C) J (0°C to 750°C) T (-200°C to 400°C) N (up to 1150°C)
  • Cold Junction: Rated at 100°C
  • Connector block: Bakelite (Ceramic optional)
  • Various MI Material sheaths
    Type K: SS310, Inconel 600, (Pyrosil available)
    Type J: SS316
    Type T: SS316
    Type N: Inconel 600, Pyrosil

We offer a comprehensive range of thermocouple sensors with connection terminal heads designed to protect the internal components from harsh operation environments. Our sensors come with a IP67 rating, all screws, washers and chain are stainless steel.
Each probe in our TS series are manufactured in-house in our Melbourne factory and comes in various calibrations (J, K, N, T, R), Standard designs are available in stock while we are fully equipped to make custom probes to suit all applications.
Contact us for any technically difficult temperature measurement application.

Data Sheets

TS-11 T/C_Data_Sheet
