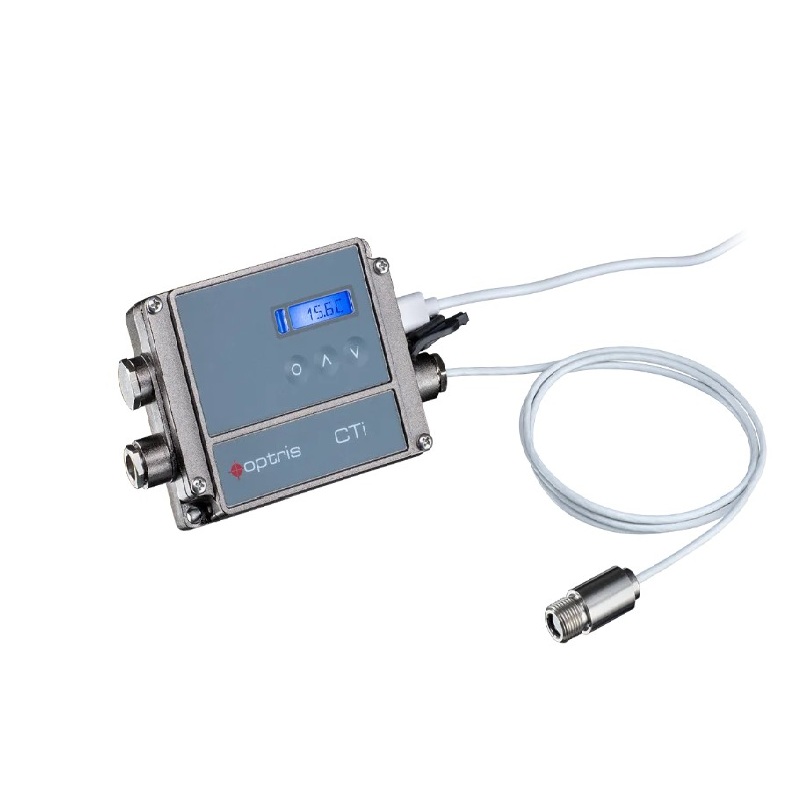

CTi LT Compact Two Piece Infrared Pyrometer. -50°C to 1050°C

The Optris CTi LT series pyrometers are equipped with one of the world’s smallest infrared sensing heads, boasting a high optical resolution of up to 22:1. Operating within a spectral bandwidth of 8-14µm, these pyrometers excel in infrared measurement of high-emissivity targets, even at low object temperatures, in fixed installed situations.

Featuring a separate control box offering Selectable analog outputs and several digital interfaces. Their robust design allows the sensing heads to withstand temperatures up to 180 °C without additional cooling, making these pyrometers ideal for high-temperature environments.

Optical resolution of up to 22:1, and a rapid exposure time of down to 115ms, these pyrometers are optimized for efficient monitoring of fast-paced manufacturing processes across industries. Their wide temperature ranges from -50 °C to 1050 °C suit non-reflecting objects.Designed for fixed installation, non-contact temperature measurement facilitated by separate electronics, with easily accessible programming keys and an LCD interface, ensures stability and accuracy over extended periods in varied industrial settings.

The adaptability of the Optris CTi LT series is further emphasized by the range of analog and digital outputs provided by the electronics box, including a built-in USB-C interface, 0/4 – 20 mA, 0 – 5 V, 0 – 10 V, thermocouple (type K), USB, RS485, RS232 interfaces, relay outputs (2 x optically isolated), Profibus DP, ProfiNet, Ethernet TCP and Ethernet/IP. This adaptability facilitates seamless integration into machinery, enhancing utility across various applications.

Optional accessories tailored to diverse industrial needs further enhance the functionality of the infrared sensor.

Measuring Temperature range (scalable via programming keys or software):

• CTi LT22 :  -50°C … 1050°C    (22:1 Optical Resolution )
• CTi LT15: -50°C … 800°C    (15:1 Optical Resolution )
• CTi LT02: -50°C … 600°C    (2:1 Optical Resolution )

Optional: Adaptable or Fixed Close Focus Lens available for precise measurement of small spot sizes

• Spectral Range: 8 – 14 µm
• System accuracy: (Ambient 23 ± 5°C):  ± 1% or ± 1°C
• Repeatability: (Ambient 23 ± 5°C): ± 0.1% or ± 0.1°C
• Response time (95%): 115 ms
• Emissivity / Gain (Via programming keys or software): 100 – 1.100
• Transmissivity (Via programming keys or software): 0.100 – 1.100
• Signal processing: Peak hold, valley hold, average, extended hold function with threshold and hysteresis.

(Configuration via Optris CompactConnect Software).

• Cable lengths: 1 m (standard), 3 m, 8 m, 15 m
• Power supply: 8-36 V DC /  Current draw: max. 100 mA
• Outputs / analog: 0 / 4 – 20 mA, 0 – 5 / 10 V, thermocouple K, alarm
• Relay outputs (optional): 2 x 60 V DC/ 42 V AC, 0.4 A; optically isolated
• Outputs / digital (optional): built-in USB-interface, Optional EtherNet/IP, Profinet, Ethernet TCP / Modbus TCP, Modbus RTU, RS485, RS232 interface or relay outputs (2 x optically isolated)
• IO Pins (3x): flexible programming as in- or output: external emissivity adjustment, ambient temperature compensation, uncommitted value, trigger (reset of hold functions), alarm output (open collector 24 V/ 50 mA)
• Size: Sensing head: Ø12mm x 35 mm, M12x1
  Electronics: 122 mm x 70 mm x 27 mm
