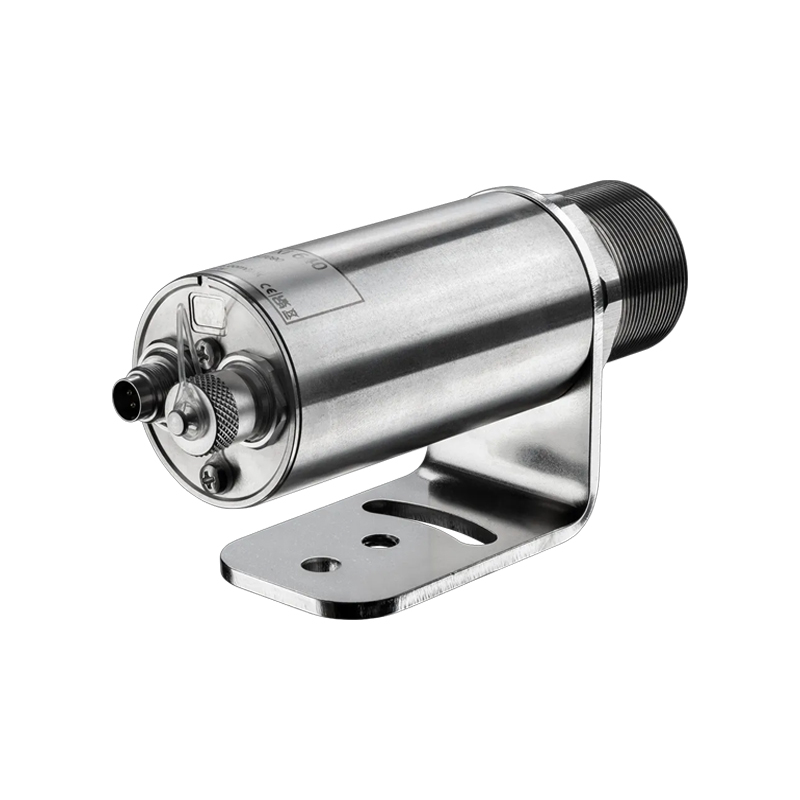

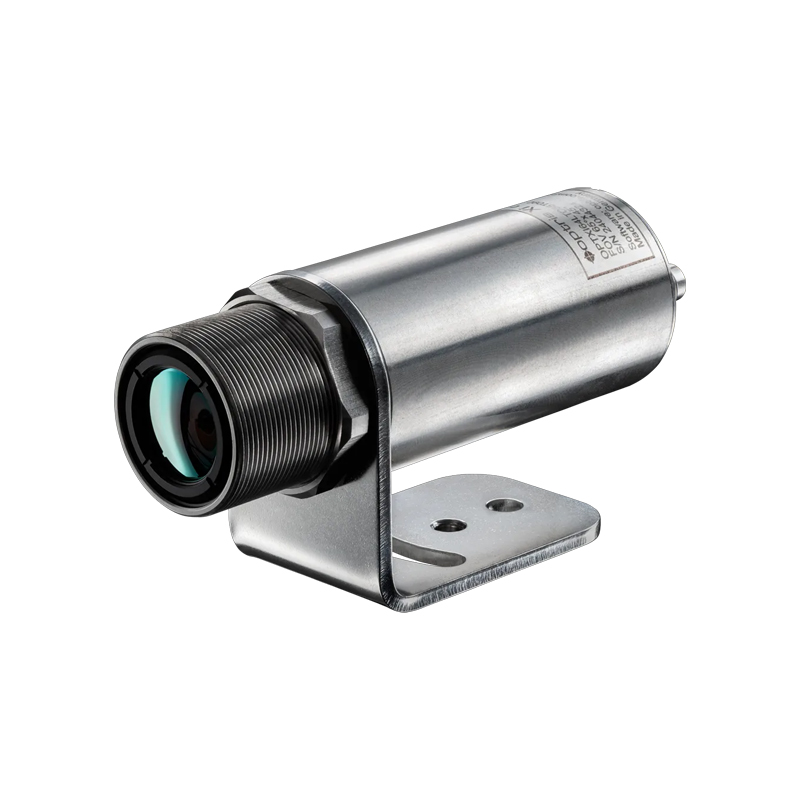

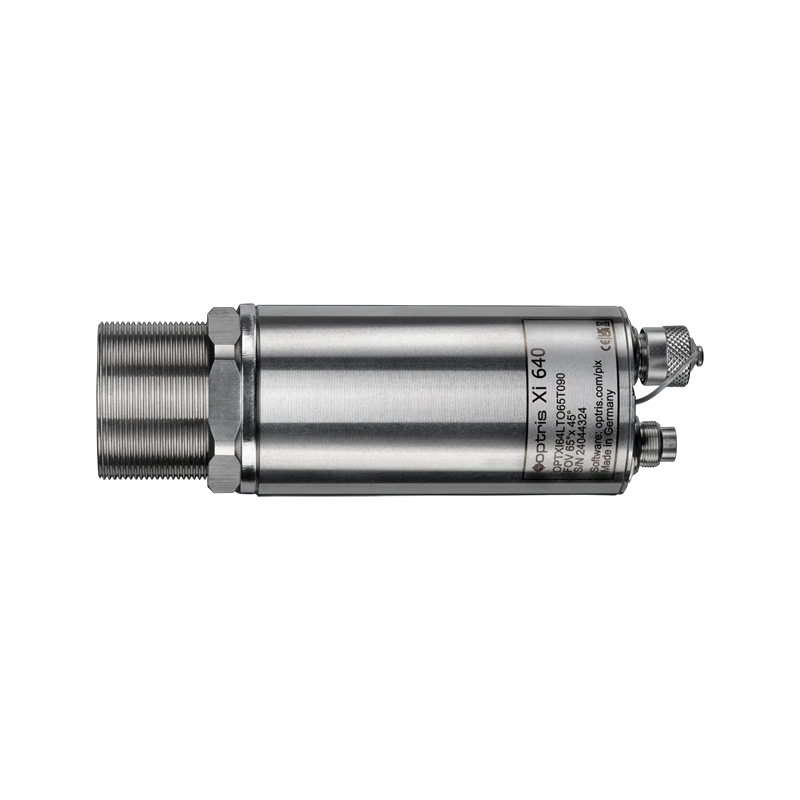

Stationary Industrial USB High-Res VGA Infrared Camera -20 to 900°C

The Optris Xi 640 is an industrial long-wavelength USB infrared camera featuring a VGA thermal imaging capability (640 x 480 pixels), enabling it to excel in capturing temperature data across an extensive range from -20°C to 900°C. A high distance-to-spot size ratio of up to 550:1 allows tiny targets to be monitored.  The infrared camera captures the heat fingerprint for operators seeking thermal insights into their processes. Furthermore, the motorized focus functionality allows users to precisely adjust focus remotely on their surface temperature measurement targets.

Connectivity is provided via a USB interface. Moreover, the camera records up to 32 Hz, enabling monitoring of rapid thermal processes. The line-scan function, for example, captures moving objects that appear only briefly in the field of view. The Xi 640 LT USB also includes analog and digital outputs, as well as a process interface. Therefore, it integrates easily into industrial machinery and control loops.

• Measurement Range: –20 °C … 100 °C; 0 °C … 250 °C; (20) 150 °C … 900 °C
• Optical resolution: 640 x 480 pixels
• Spectral range: 8 – 14 μm
• Pixel pitch : 12 µm
• Selectable Lens options: 22° x 17° (f = 20), 36° x 26° (f = 12.7), 65° x 45° (f = 7.7)
• Optical resolution (D:S): 550:1 (22° optics), 350:1 (36 °optics), 210:1 (65° optics)
• PC interface: USB 2.0 / optional USB to GigE (PoE) conversion
• Standard process interface (PIF): 0–10 V input, digital input (max. 24 V), 0–10 V output
• Process interface (PIF)industrial: 2 x 0–10 V inputs, digital input (max. 24 V), 3x 0/4-20 mA outputs,3 x relay (0–30 V / 400 mA), fail-safe relay
• Cable length (USB): 1 m (standard), 3 m, 5 m, 10 m, 20 m
• Power Supply : USB

Scope of supply:

• Process imager Xi 640
• USB cable (1 m)
• Standard PIF cable (1 m) incl. terminal block
• Mounting bracket with tripod thread, mounting nut
• Software package Optris PIX Connect
