Precision Ultra Short wavelength Thermal Camera for Molten Metals,Laser Processes. 900 °C to 2450 °C

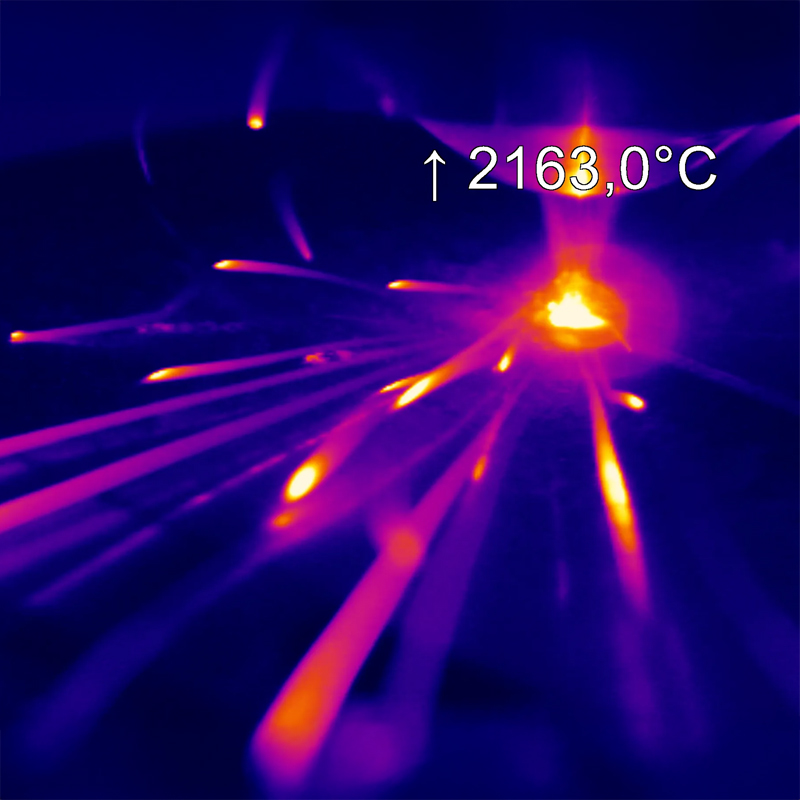

The Optris PI 05M is an ultra short wavelength thermal camera designed for non-contact measurement of high-temperature targets. Operating in the 0.50–0.54 μm spectral range, it is ideal for molten metals, reflective materials, and additive manufacturing using NIR and CO₂ lasers. Its short wavelength improves measurement accuracy and repeatability on metals by reducing the effects of low emissivity compared to long-wave thermal cameras.

The PI 05M measures temperatures from 900°C to 2450°C and features a 27° × 17° field of view for precise thermal imaging. It offers flexible imaging performance with resolutions up to 764 × 480 pixels at 32 Hz, 382 × 288 pixels at 80 Hz, and up to 1 kHz for high-speed applications, including a dedicated line-scanning mode.

The camera connects to a PC via USB and includes the free PIX Connect software for thermal analysis, line scanning, image merging, and temperature data collection. It is also compatible with accessories such as water-cooled housings (up to 315°C ambient temperature), air purges, and a range of mounting and interface options for reliable operation in demanding industrial environments.

• Measurement Range:  900 °C ( 950 °C for f=50mm - optics) ... 2450 °C (27 Hz mode) / 950 °C (1000 °C for f=50mm - optics) ... 2450 °C (32 / 80 Hz mode) / 1100 °C (1150 °C for f=50mm - optics) ... 2450 °C (1 kHz mode)
• Detector: CMOS (15 μm x 15 μm)
• Optical resolution: 764 x 480 pixels
• Frame rate: 80 Hz / switchable to 27 Hz / 1 kHz line scanning function
• Spectral range: 500 – 540 nm
• Optics (FOV) : FOV @ 764 x 480 px: FOV @ 382 x 288 px: 27° x 17° (f = 25 mm) 14° x 11° (f = 25 mm) 13° x 8° (f = 50 mm) 7° x 5° (f = 50 mm)
• Thermal sensitivity (NETD): < 2 K (1400 °C/ 27 Hz to 1 kHz)
• PC interface: USB 2.0 / optional USB to GigE (PoE) interface
• Standard process interface (PIF) : 0 – 10 V input, digital input (max. 24 V),0 – 10 V output
• Industrial process interface (PIF) (optional): 2x 0 – 10 V input, digital input (max. 24 V), 3x 0/4 – 20 mA outputs, 3x relays (0 – 30 V/ 400 mA), fail-safe relay
• Cable length (USB): 1 m (standard), 5 m, 10 m, 20 m, high temperature USB cable (180 or 250 °C) 5 m and 10 m
• Ambient temperature: 5 ... 50 °C
• Power Supply : USB
• Software: optris PIX Connect / IRmobile Android App

Scope of supply:

• Infrared Camera PI 05M, 1 lens
• USB cable (1 m)
• PIF cable (1 m) incl. terminal block
• Tripod
• Aluminum case
• Software package optris PIX Connect
